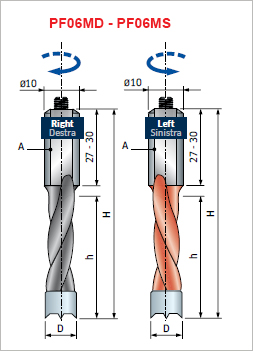

Dowel drills - blind holes
For boring machines with chucks or adapters suitable for
blind on solid wood and laminates. HW with center point and M5x10 mm adjusting screw. Cylindrical shank with clampling surface 10x27 or 10x30 mm shank.
| |
| |
 |

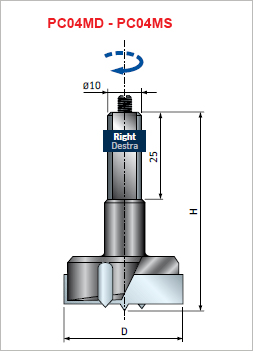

Carbide boring bits for hinges
Fit on multiboring machines with the use of chucks or adapters
for obtaining hinge pockets or blind holes on solid wood or laminates.
HW with center point and M5X10 mm adjusting. Cylindrical shank
with clampling surface 10x25 mm. |
|
| |
 |
CNC Finger joint tools
For joining soft and hard solid woods, exotic woods from 44mm
to max 92 mm thickness on CNC machining centers and overhead
routing machines.

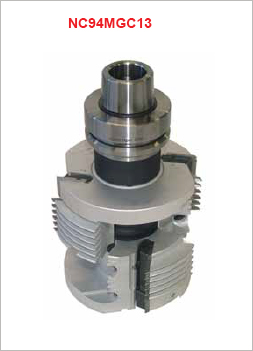

Item NC94MGC13 includes two cutterheads supplied with knives
and one set of spacers to adjust the join height.
Item NC94MGC13 is supplied without chuck for chuck ref see the
accessories section to order a right rotation set please quote
item code NC94MGC13-D to order a left hand rotation set, please
quote item code NC94MGC13-S |
|
| |
 |

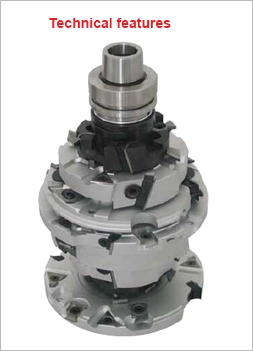

Freud standard tools and systems features for windows and doors:
• Number of teeth 2
• Body in high strength aluminum alloy
• Balancing levels adapted to the most innovative machines
• Fitting of any spindles and the majority of CNC machines customized
solutions are developed for machines with specific requirements
• Rregulation system NSR to regulate the inserts height with increments
of 1 mm and precision of upto 1/100 of amm
• Holder designed for microchips placement for random positioning
machine
• Multiprofile tools for a wide selection of windows applications
• Full range of routing cutters and bits for the complete window production |
|
| |
 |
